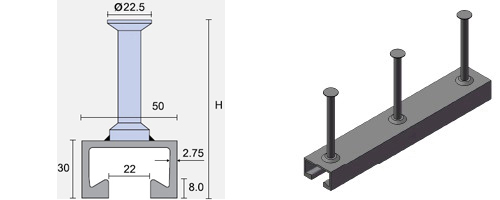

| Model | KS 50/30 |
| Material / surface treatment | Q235，16Mn/FV,WB |
| Design load｛KN｝ | It can bear dynamic load |
| ≥C25（The maximum design value specified in the technical standard，C25） | 18.2/24.8 |
| Anchor shape | C | R220 |
| Installation height | 149 | 250 |
| Fillings | Polystyrene particle filling（PS） |
Anchor shape C = round anchor (standard style), I = welded anchorage in exceptional cases, r = extended reinforcement welding (for thin concrete materials)
| length ［mm] | Number of anchors (no.) | Anchor spacing s |
| Short block | 150 | 2 | 100 |
| 200 | 2 | ≤150 |
| 250 | 2 | ≤200 |
| 300 | 2/3 | ≤250 |
| 350～550 | 3 | ≤250 |
| 600～800 | 4 | ≤250 |
| 850～1050 | 5 | ≤250 |
| Truncation length | 1050＜L＜6070 Customized | ≤250 |
| Delivery length | 6070（-0/+50） | 25 | ≤250 |
